Published on Jun 05, 2023

Stealth Fighter

Stealth means 'low observable'. The very basic idea of Stealth Technology in the military is to 'blend' in with the background. The quest for a stealthy plane actually began more than 50 years ago during World War II when RADAR was first used as an early warning system against fleets of bombers. As a result of that quest, the Stealth Technology evolved. Stealth Technology is used in the construction of mobile military systems such as aircrafts and ships to significantly reduce their detection by enemy, primarily by an enemy RADAR. The way most airplane identification works is by constantly bombarding airspace with a RADAR signal.

When a plane flies into the path of the RADAR, a signal bounces back to a sensor that determines the size and location of the plane. Other methods focus on measuring acoustic (sound) disturbances, visual contact, and infrared (heat) signatures. Stealth technologies work by reducing or eliminating these telltale signals. Panels on planes are angled so that radar is scattered and no signal returns. Planes are also covered in a layer of absorbent materials that reduce any other signature the plane might leave. Shape also has a lot to do with the `invisibility' of stealth planes. Extreme aerodynamics keeps air turbulence to a minimum and cut down on flying noise. Special low-noise engines are contained inside the body of the plane. Hot fumes are then capable of being mixed with cool air before leaving the plane. This fools heat sensors on the ground. This also keeps heat seeking missiles from getting any sort of a lock on their targets

INTRODUCTION

Stealth properties give it the unique ability to penetrate an enemy's most sophisticated defenses and threaten its most valued and heavily defended targets. At a cost of $2 billion each, stealth bombers are not yet available worldwide, but military forces around the world will soon begin to attempt to mimic some of the key features of stealth planes, making the skies much more dangerous.

With the increasing use of early warning detection devices such as radar by militaries around the world in the 1930's the United States began to research and develop aircraft that would be undetectable to radar detection systems. The first documented stealth prototype was built out of two layers of plywood glued together with a core of glue and sawdust. This prototype's surface was coated with charcoal to absorb radar signals from being reflected back to the source, which is how radar detection systems detect items in the air.

Jack Northrop built a flying wing in the 1940's. His plane was the first wave of stealth aircraft that actually flew. The aircraft proved to be highly unstable and hard to fly due to design flaws. The United States initially orders 170 of these aircraft from Northrop but cancelled the order after finding that the plane had stability Flaws. Then in 1964, SR-71 the first Stealth airplane launched. It is well known as 'black bird'. It is a jet black bomber with slanted surfaces. This aircraft was built to fly high and fast to be able to bypass radar by its altitude and speed.

AEROPLANE BASICS

Definition

"A heavier than air flying machine supported by airfoils , designed to obtain, when driven through the air at an angle inclined to the direction of motion, a reaction from the air approximately at right angles to their surfaces".

Four forces on an aeroplane

Weight

Weight is a force that is always directed toward the center of the earth. The magnitude of this force depends on the mass of all of the parts of the airplane itself, plus the amount of fuel, plus any payload on board (people, baggage, freight, ...).The weight is distributed throughout the airplane. But we can often think of it as collected and acting through a single point called the center of gravity. In flight, the airplane rotates about the center of gravity, but the direction of the weight force always remains toward the center of the earth. During a flight, the airplane's weight constantly changes as the aircraft consumes fuel.

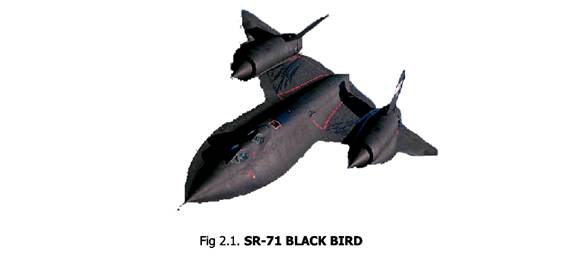

Blackbird

Jack Northrop built a flying wing in the 1940's. His plane was the first wave of stealth aircraft that actually flew. The aircraft proved to be highly unstable and hard to fly due to design flaws. The United States initially orders 170 of these aircraft from Northrop but cancelled the order after finding that the plane had stability Flaws. Then in 1964, SR-71 the first Stealth airplane launched. It is well known as "black bird'. It is a jet black bomber with slanted surfaces. This aircraft was built to fly high and fast to be able to bypass radar by its altitude and speed. The Blackbird was developed primarily for the Cold War between the United States and the U.S.S.R. SR-71.

HOW DOES STEALTH TECHNOLOGY WORK?

The idea is for the radar antenna to send out a burst of radio energy, which is then reflected back by any object it happens to encounter. The radar antenna measures the time it takes for the reflection to arrive, and with that information can tell how far away the object is.

The metal body of an airplane is very good at reflecting radar signals, and this makes it easy to find and track airplanes with radar equipment.

The goal of stealth technology is to make an airplane invisible to radar. There are two different ways to create invisibility:


> The airplane can be shaped so that any radar signals it reflects are reflected away from the radar equipment.
> The airplane can be covered in materials that absorb radar signals

REQUIREMENTS TO BE STEALTHY

To make a stealthy aircraft, designers had to consider six key in gradients:
1. They need to reduce the imprint on the radar screen.
2. Turn down the heat of its infrared picture.
3. They need to reduce muffling noise.
4. They need to reduce the turbulence.
5. Making the plane less visible.
6. Stifle radio emissions.
