Abstract of Java Card

Java Card is a smart card that is capable of running programs written in Java. For this a new Java platform, Sun's JavaSoft division has made available the Java Card 2.0 API specification, and several licensees are now implementing this API on smart cards. In order to program Java Cards that are 2.0-compliant, developers need to understand what a Java Card is architecturally, what its core classes are, and how to develop applications for the card. This article gets inside a Java Card, providing you, the developer, with technical guidance on the system architecture, application programming interface, and runtime environment of the Java platform in a smart card

A Java Card is a smart card that is capable of running Java programs. The Java Card 2.0 specification contains detailed information for building the Java Card virtual machine and application programming interface (API) in smart cards. The minimum system requirement is 16 kilobytes of read-only memory (ROM), 8 kilobytes of EEPROM, and 256 bytes of random access memory (RAM). A Java Card is shown below.

System architecture on the Java Card

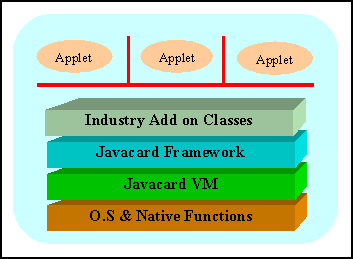

As shown in the figure, the Java Card VM is built on top of a specific integrated circuit (IC) and native operating system implementation. The JVM layer hides the manufacturer's proprietary technology with a common language and system interface. The Java Card framework defines a set of Application Programming Interface (API) classes for developing Java Card applications and for providing system services to those applications. A specific industry or business can supply add-on libraries to provide a service or to refine the security and system model. Java Card applications are called applets . Multiple applets can reside on one card. Each applet is identified uniquely by its AID (application identifier), as defined in ISO 7816, part 5.
